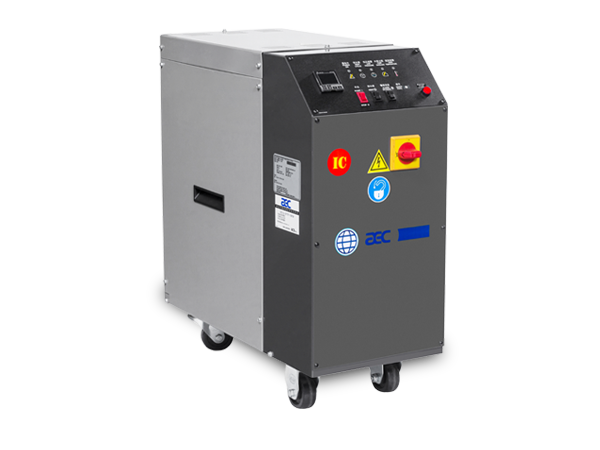

IC Series Water Temperature Control Unit

ACS IC Water Temperature Control Units have an operating leaving water temperature range of 0°C up to a Maximum of 121°C, with flow rates from 132 lpm up to 227 lpm @ pressures from 2.0 bar to 2.7 bar.

Home　/　Product　/　TEMPERATURE CONTROL　/　Water 　/   IC Series
  • Standard Features
  • Available Options

    • 1/16 Din Microprocessor PID Controller

    • Automatic vent sequence

    • IP10 electrical enclosure

    • Disconnect Switch

    • Stainless Steel immersion heater

    • Motor Circuit Protector

    • Independent High Temperature Safety Thermostat

    • Pressure switch set @ 1.1 bar

    • Safety Pressure relief valve set @ 10.3 bar

    • Available configurations of 9kW and 12kW

    • Process Pumps 0.75kW, 1.49kW, and 2.24kW

    • ¼” cooling solenoid

    • ¾” water supply connection, 1” process connections; valve size matches drain size

    • 3” casters

Product Parameters

Service & Performance CategoryTrue Temp™ MiniTrue Temp II™True Temp™ ICTrue Temp™ CompactTrue Temp™ Upright
   Heating Capicity3kW,6kW,9kW, 12kW9kW, 12kW9kW, 12kW9kW, 12kW, 18kW, 24kW9kW, 12kW, 18kW, 24kW,36kW,48kW
   Pumps1/2HP, 3/4HP3/4HP, 1HP, 2HP, 3HP, 5HP1HP, 2HP, 3HP3/4HP, 1HP, 2HP, 3HP, 5HP, 7.5HP3/4HP, 1HP, 2HP, 3HP, 5HP, 7.5HP
   Voltages380-400-415V,50Hz380-400-415V,50Hz380-400-415V,50Hz380-400-415V,50Hz380-400-415V,50Hz
   ControllerEurothermEurothermDeltaEurotherm or AdvancedEurotherm or Advanced


Available Features
   High Temperature Safety Thermostat●●●●●
   Low Supply Pressure Switch●●●●●
   General Fault Audible/Visual Alarm●●●●●
   Mold Purge●●●●●
   Auto Vent●●●●●
   Manual Bypass●●●●●
   Pressure Regulator/Relief Valve●●●●●
   Closed Loop Heat Exchanger●●
   Flow Meter●●
   Pressure Gauge●●●StandardStandard
   Quick Cool●●●●●
   Half/Full Heat●●
   Auto Tune●●●●●
   4-20mA●●●●●
   RS-485 Modbus●●●●●
   RS-232 Modbus●●●●●
